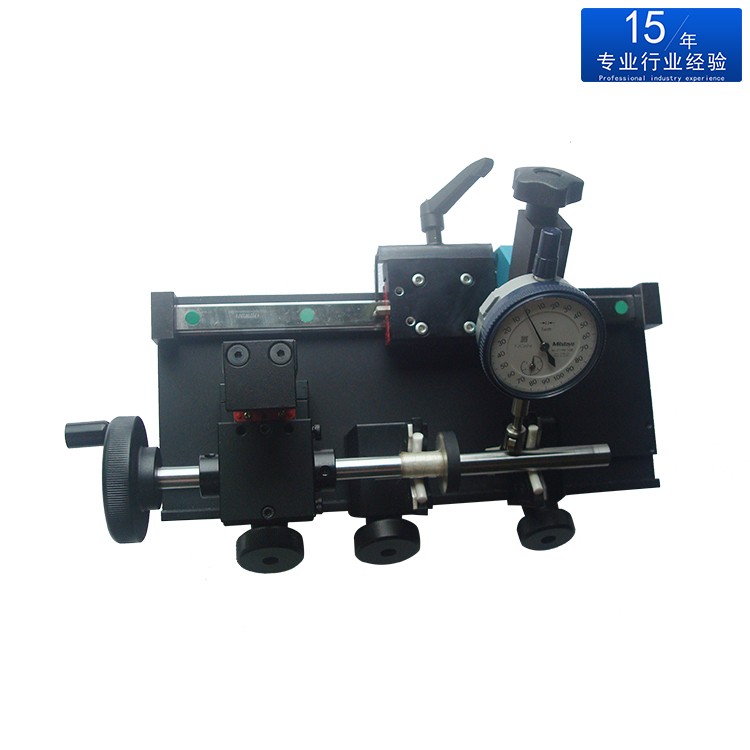

棒材跳動測量?jī)x
棒材跳動測量?jī)x主要用于測量各類精密軸芯、膠輥、鋁棒、滾筒等圓柱型形狀產品的外徑與跳動值（偏擺值），可根據顧客的要求設計不同的治具來配合測量不同產品的外徑或跳動值（偏擺值）
陶瓷V型跳動測量?jī)x，鎢鋼棒,陶瓷棒.鋁棒直線度，真圓度批量快速檢測
Bar Run-out Measuring Instrument Parameters
The bar run-out measuring instrument is mainly used to measure the outer diameter and run-out value (yaw value) of cylindrical products with various precision axle cores, cots, aluminum bars and drums. Different fixtures can be designed according to customer's requirements to coordinate the measurement of the outer diameter or run-out value (yaw value) of different products.
V-type Ceramic Run-out Measuring Instrument, Tungsten Steel Bar, Ceramic Bar, Aluminum Bar Straightness, True Roundness Batch Rapid Detection
名稱Name(mm) | 規格Specification |
可夾持外徑 Clamping diameter | 3-30 |
允許長度 Allow Length | ≤260 ≤260-550 (可儀非標訂制) |
旋轉精度： Rotation accuracy | ＜0.0005 |
測量表可選購0ptional Gauge | 0.001,0.0001（萬分表） |
