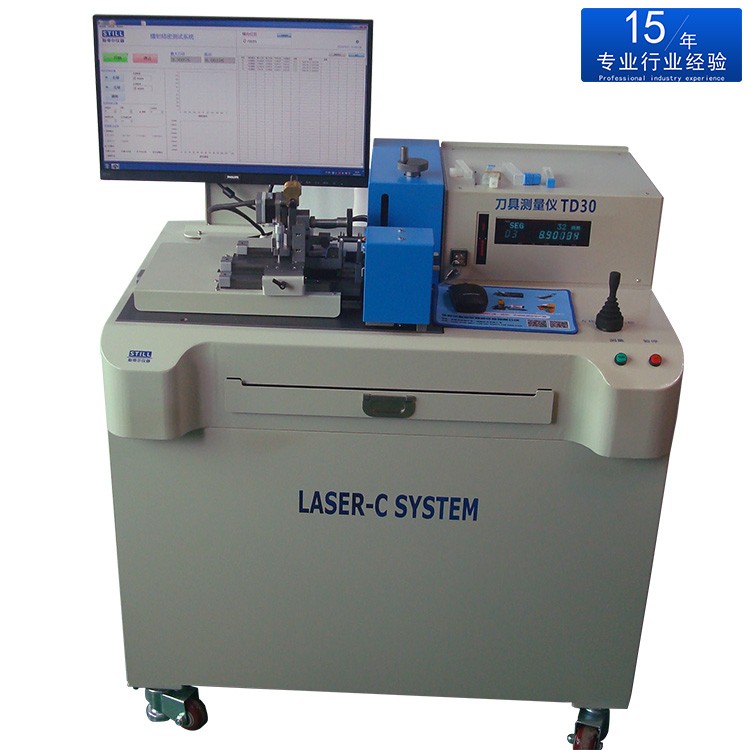

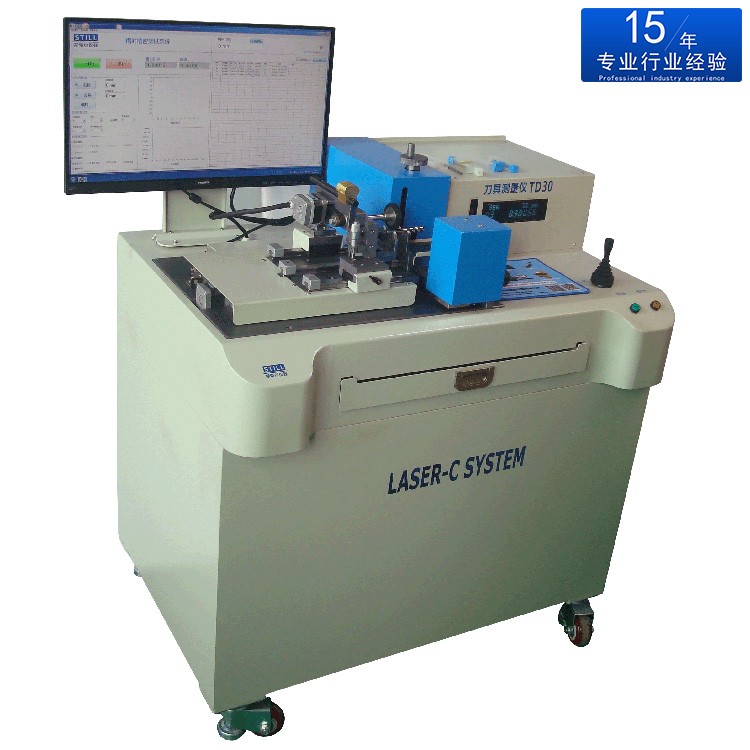

型號(mm|)Type | TD-06微鉆專用 | TD-30 | TD-60 |
刀柄裝夾外徑 Outer dia. of holder clamping | 2-15 | 3-30 | 6-65頂尖式裝夾 |
測量外徑 Measuring Outer dia. | 0.05-10 | 0.3-30 | 1-60 |
測量長度 Measuring Length | ≤150可調 | ≤450可調 | |
線性精度 Linear Accuracy | ±0. 5 | ±0.0015 | ±0.003 |
測量重復精度 Measurement repetition accuracy | ±0.5 | ±0.001 | ±0.0015 |
測量功能：
1、采用日本MITUTOYO激光LSM503S測頭，搭載斯帝爾鐳射測量軟件MR-MEAS，以達到高精度快速掃描計算測量光軸，銑刀刀刃直徑，齒輪齒頂圓跳動等功能；
2、自動控制步進馬達驅動測量，并自動根據軸徑選擇合適的速度轉動；
3、測量完成自動停止，數據自動列表于測量軟件表格內；
4、測量軟件MR-MEAS可設置測量直徑段差；
5、對于多刀刃，軟件可直接人為選擇設置刀刃數目。
6、機器會以內定轉速自動測量，不需要調節參數，即可精準測量出刀刃直徑。，
7、一鍵啟動，自動轉動工件，自動讀取刀具刀刃徑與跳動值
8、帶位移標尺顯示，可以定向不同位置截面測量
9、測量光棒類，鉆頭，銑刀，單刃或多刃皆可測量。
10、光軸測量，可自動測量出來真圓度，及圓度曲線圖。
11、長刀大刀測量，一般帶工藝頂尖孔，測量工裝采用頂尖機構，可增加測量轉動機構及控制電路，轉動由馬達帶動卡在工件軸的雞心爪轉動，雞心爪由客戶自備。
12、長刀大刀測量，一般帶工藝頂尖孔，測量工裝采用頂尖機構，訂制電動轉動機構，采用球墨鑄鐵固定軌，頂尖座鎖緊采用我司專利機構,快速鎖緊，保證頂尖重復定位精度≤0.003mm。
Measuring function:
1. Using Japanese MITUTOYO laser LSM503S probe and equipped with STILL laser measuring software MR-MEAS, to achieve high precision and fast scanning calculation of measuring optical axis, milling cutter edge diameter, gear top circle jumping and other functions;
2, Automatically control the stepper motor drive measurement, and automatically select the appropriate speed rotation according to the diameter of the shaft.
3. Automatically stop the measurement and list the data in the measurement software table;
4. The measuring software MR-MEAS can set the difference of measuring diameter segment;
5. For multiple blades, the software can directly set the number of blades manually.
6. The machine can automatically measure the fixed speed within the machine. No need to adjust the parameters, it can accurately measure the blade diameter.
7, Start with one key, automatically rotate the workpiece, automatically read the tool edge diameter and runout value.
8, Display with displacement scale, cross section measurement can be directed at different positions
9. Measuring rods, drills, milling cutters, single-edged or multi-edged can be measured.
10, Optical axis measurement, can automatically measure the true roundness, and roundness curve.
11, Long cutter and big cutter measurement, generally with process apex hole, measuring tooling adopts apex mechanism, which can increase measuring rotation mechanism and control circuit. Rotation is driven by motor to rotate the core claw stuck in the workpiece shaft, and the core claw is provided by customers.
12,Long cutter and big cutter measurement, generally with process top hole, measuring tooling adopts top mechanism, can customize electric rotation mechanism, use nodular cast iron fixed rail, top seat locking to use our patented parts, fast locking, ensure the accuracy of repetitive apex positioning ≤0.003mm.
